Hybrid System

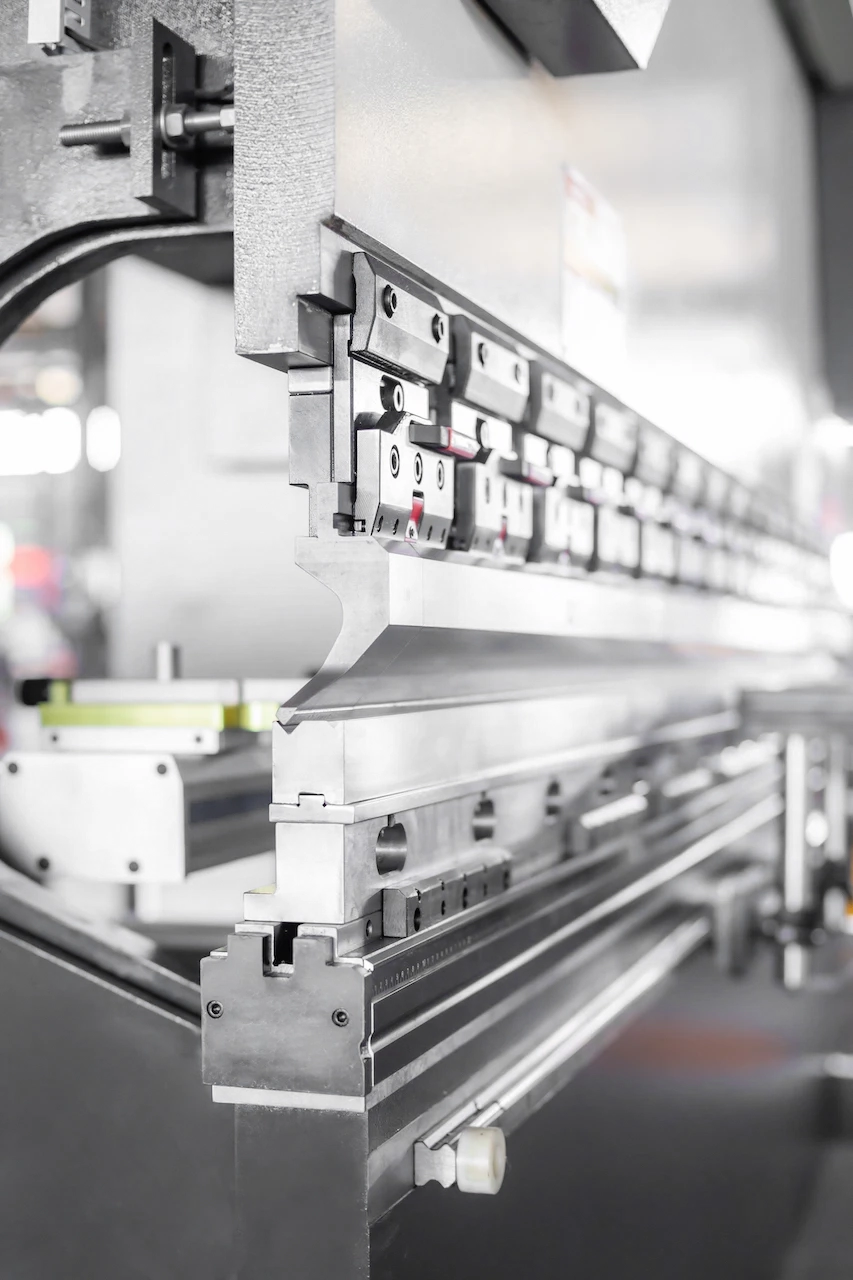

Servo-hydraulic press brakes, used for the precise bending of metal sheets, are equipped with variable speed drives for energy efficiency and high productivity. Thanks to the use of intelligent drives and optimal setpoints for torque and rotational speed, the motor-pump system delivers performance tailored to the needs of each phase of the cycle.
The higher the proportion of operation at partial load, the greater the potential for savings, as only the energy needed for moving the masses and bending during the cycle is consumed. The components required for the servo-hydraulic drive are configured according to specific requirements based on the principle of modular design. Additionally, the system can be extended with tool clamping and/or crowning. Servo-hydraulic systems are part of the energy reduction strategy for machines and systems.
| MODEL | Bending Length (A) mm | Approaching Speed mm/s | Working Speed Ram Speed mm/s | Return Speed mm | X-axis Stroke mm | R-axis Stroke mm | Distance Between Columns (B) mm | Throat Depth (D) mm | Stroke (C) mm | Daylight (E) mm | Main Motor kW |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 70T/2500 | 2500 | 300 | 30 | 260 | 500 | 200 | 2050 | 300 | 150 | 460 | 2*5.5 |
| 110T/3200 | 3200 | 300 | 23 | 260 | 500 | 200 | 2700 | 400 | 200 | 480 | 2*5.5 |
| 110T/4000 | 4000 | 300 | 23 | 300 | 500 | 200 | 3100 | 400 | 200 | 480 | 2*5.5 |
| 135T/3200 | 3200 | 270 | 20 | 250 | 500 | 200 | 2700 | 400 | 200 | 480 | 2*7.5 |
| 135T/4000 | 4000 | 270 | 20 | 250 | 500 | 200 | 3100 | 400 | 200 | 480 | 2*7.5 |
| 170T/3200 | 3200 | 250 | 15 | 220 | 500 | 200 | 2700 | 450 | 200 | 480 | 2*7.5 |
| 170T/4000 | 4000 | 250 | 15 | 220 | 500 | 200 | 3100 | 450 | 200 | 480 | 2*7.5 |
| 220T/3200 | 3200 | 200 | 20 | 200 | 500 | 200 | 2600 | 450 | 200 | 480 | 2*11 |
| 220T/4000 | 4000 | 200 | 20 | 200 | 500 | 200 | 3100 | 450 | 200 | 480 | 2*11 |
| 250T/3200 | 3200 | 200 | 15 | 200 | 500 | 200 | 2600 | 450 | 250 | 540 | 2*11 |
| 300T/3200 | 3200 | 150 | 12 | 150 | 500 | 200 | 2600 | 500 | 250 | 570 | 2*11 |
